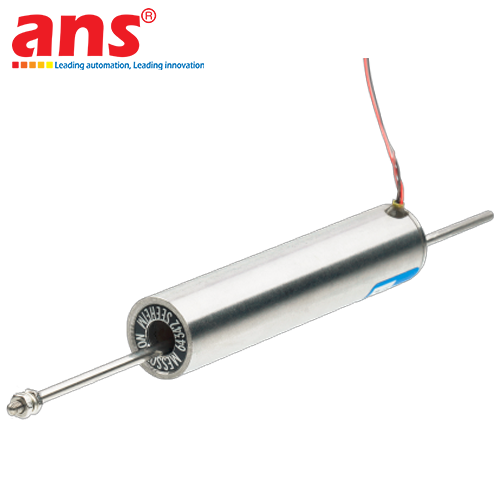

The Messotron WM Series Inductive Displacement Gauge Probes (comprising premium models WM 1 and WM 2), engineered and manufactured in Germany, represent a premium category of ultra-high-precision linear measurement systems developed explicitly for micro-dimensional tracking, geometric tolerance inspection, and integration into high-speed automated quality control fixtures (QC gauge fixtures). Operating on the sophisticated non-contact Linear Variable Differential Transformer (LVDT) electromagnetic architecture, the WM Series translates microscopic physical displacements of the probe plunger into absolute linearly proportional electrical outputs. By completely eradicating direct electrical-mechanical friction between the dynamic magnetic core element and the surrounding stationary coil matrix, the probe delivers a virtually infinite electrical operating lifespan free from degradation. This core design maintains supreme signal consistency and prevents zero-point drift across millions of high-frequency continuous cycles. A defining mechanical feature of the WM Series is its cartridge probe architecture incorporating an integrated low-force spring-return configuration coupled with precision-machined guide bushings or ball-bearing sleeves. This design yields frictionless slide travel, entirely cancels out lateral forces or inertial loads, and shields delicate specimen surfaces against physical scratching or indentation stresses under pressure. Machined with a fine micro-travel configuration (with WM 1 and WM 2 engineered for specific micro-ranges), the sensor provides sub-micron resolution, serving as an invaluable asset for metrology engineers to capture subtle structural deviations on machined workpieces.

Regarding structural hardware, the entire shell of the Messotron WM Series probe is machined from industrial stainless steel, providing outstanding defensive barriers against external shocks, high-frequency shop-floor vibrations, and aggressive corrosive fluids like cooling lubricants and chemical solvents. This product family is layout-engineered with an exceptionally compact pen-type cylindrical envelope, allowing high-density array clustering and the concurrent integration of multi-probe setups on a single testing fixture. This configuration permits multi-point tracking of intricate component profiles, such as the roundness of roller bearings, flatness of circuit boards, concentricity of engine crankshafts, or the uniform thickness of thin industrial films. The internal multi-coil matrix is treated with robust electromagnetic interference (EMI) shielding layers and thermal expansion optimization algorithms, guaranteeing uncompromised data tracking inside demanding factory layouts subjected to significant magnetic disturbances or variable workshop temperatures. When interfaced with Messotron's premium signal conditioning transmitters, the measurement values from WM 1 and WM 2 are converted into industrial electrical outputs (such as 4-20mA, 0-10V, or high-resolution digital interfaces). This enables seamless connectivity to central PLC systems and industrial PCs running Statistical Process Control (SPC) matrices in automotive assembly plants, aerospace production facilities, semiconductor cleanrooms, and national metrology validation centers.

• Manufacturer: Messotron (Hennig GmbH)
• Country of Origin: Germany
• Operating Mechanism: Non-contact Inductive LVDT Configuration (Linear Variable Differential Transformer)
• Consolidated Models in Series: WM 1, WM 2
• Mechanical Sensor Configuration: Probe / Cartridge type (Taster) with internal spring-return plungers
• Nominal Measuring Travel Ranges: Customized for ultra-precise micro-stroke tracking (Correspondingly micro-span strokes for WM 1 and WM 2 models)
• Full-Scale Linearity Deviation: Extremely low, ≤ ±0.1% or ≤ ±0.2% of Full Scale (F.S.) ensuring peak measurement fidelity
• Mechanical Resolution: Sub-micron resolution capabilities, limits defined by the capabilities of the external signal conditioner
• Probe Measuring Force: Meticulously calibrated low spring force to mitigate contact pressure on parts
• Enclosure Shell Material: High-grade Industrial Stainless Steel
• Environmental Protection Rating: IP65 standard classification against dust and localized liquid sprays
• Mounting Orientation: Standard cylindrical diameter body (e.g., 8mm or equivalent), highly compatible with universal clamping blocks
• Electrical Interface Layout: High-quality oil-resistant integrated cables or specialized low-noise multi-pin connectors
• Standard Operating Thermal Range: -10°C to +80°C (High thermal stability with minimal temperature drift factors)
• Target Carrier Frequency Baseline: Highly optimized for reliable performance within 2 kHz to 5 kHz excitation ranges
