F-1100-11-C3-12XX TURBINE FLOW METERS Onicon Vietnam

DESCRIPTION

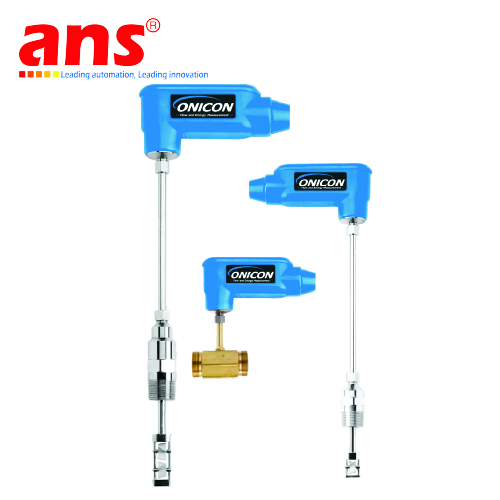

ONICON’s F-1000 Series is a family of insertion and inline style turbine flow meters that provide accurate, reliable flow measurement in a variety of applications.

The F-1000 Series flow meters are suitable for use in pipes ranging in size from ¾” to 72” in diameter. Each model utilizes ONICON’s patented electronic turbine rotation sensing system and unique low mass turbine design that is accurate over wide flow ranges with excellent low flow measurement capability.

APPLICATIONS

• HVAC hydronic applications including chilled water, heating hot water and water/glycol solutions
• Domestic/municipal water*
• Clean process water*

FEATURES

Unmatched Price vs. Performance
Individually wet-calibrated, highly accurate instrumentation at very competitive prices.

Simplified Hot Tap Insertion Design
This feature allows insertion meters to be removed, by hand, without system shutdown.

Excellent Long Term Reliability
Patented electronic sensing is resistant to scale and particulate matter. Low mass turbines with engineered jewel bearing systems provide a mechanical system that virtually does not wear.

The Dual Turbine Advantage
Dual counter-rotating turbines with mirrored helixes reduce the effects of the most common type of flow distortion, the swirl caused by bends
and elbows. This reduces the upstream straight run requirements in some applications.

Programmable with Built-in Diagnostics
The USB interface makes field programming simple. Advanced diagnostics provide real-time data from the meter.

Bluetooth® Connectivity
Optional Bluetooth® interface enables wireless access to real-time data for fast commissioning and advanced diagnositcs.

CALIBRATION

All F-1000 Series flow meters are wet calibrated in a flow laboratory against standards that are directly traceable to National Institute of Standards and Technology (N.I.S.T.). A certificate of calibration
accompanies every meter.
