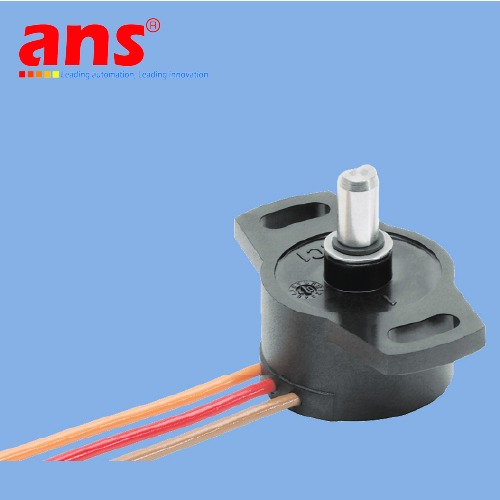

Sensor Potentiometers SP-2831-100-002-001 Novotechnik Vietnam
Price: Contact
Brand: Novotechnik
Category: Sensors
Supplier: ansvietnam
Origin: Germany
Gọi lại cho tôi
0911472255Sensor Potentiometers SP-2831-100-002-001 Novotechnik Vietnam
Technical data
Mechanical Data
- Mounting screws: 2 M4 head screws and washers
- Starting torque of mounting screws with washers on housing flange: 180Ncm
- Mechanical angle: 360°, continuous
- Permissible axial load (axial and radial) static or dynamic force: 20N
- Torque: 0.2 (IP54), 0.5 (IP65) Ncm
- Maximum operating speed: 120 min-1
- Weight: 30g
Electrical Data
- Actual electrical angle: 100 ° ± 2°
- Nominal resistance: 3 kΩ
- Resistance tolerance: ±20 %
- Repeatability (depending on mounting tolerance): with shaft shape B ≤ 0.03 °, D ≤ 0.06 °
- Effective temperature coefficient of the ratio of output voltage to application application: typical 5 ppm/K
- Independent linearity: 1.0 ±%
- Maximum permissible applied voltage: 42V
- Recommended operating wiper current: ≤ 1µA
- Maximum wiper current in case of fault: 10mA
- Insulation resistance (500 VDC, 1 bar, 2s): ≥ 10MΩ
- Dielectric strength (50 Hz, 2s, 1 bar, 500 VAC): ≤ 100µA
- Conductor length, bare, tinned: approx. 300mm
- Conductor diameter: approx. 1mm2
Environmental Data
- Temperature range: -40 ... +120 (temporary 150°C, max. 1 h) °C
- Vibration: 5...2000 Hz
- Amax = 0.75 mm
- max = 20 g
- Life cycle: 50 x 106 movements
- Protection class: IP 65 (DIN 400 50 / IEC 529)
Applications
- Automation and control systems
- Hydraulic and pneumatic systems
- Industry
- Manufacturing
- Medical equipment
- Measuring equipment
