0911472255Magnetostrictive Sensors BTL29LR BTL7-S573-M0650-P-S32 Balluff Vietnam
📘 Product Overview

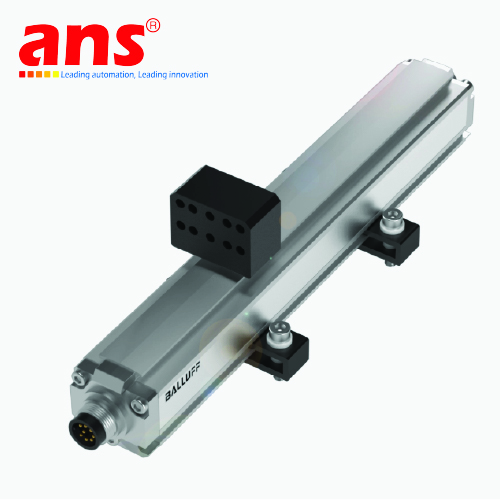

The Balluff MP727991, part of the BTL7-P Series, is a magnetostrictive linear position sensor designed for industrial applications requiring high accuracy, reliability, and long measurement ranges. Featuring an SSI interface and a compact profile design, it ensures seamless integration into modern automation and motion control systems.
Measurement lengths range from 50 mm up to 7,620 mm, offering outstanding flexibility for a wide range of applications.
⚙️ Key Features
-
Interface: SSI (Synchronous Serial Interface) for stable and precise digital communication.
-
Measuring range: 50 – 7,620 mm, adaptable to multiple industrial setups.
-
Repeat accuracy: ≤ ±5 µm for consistent precision in position detection.
-
Linearity deviation: ±30 µm (for 50…5,500 mm measuring range).
-
Operating voltage: 10 – 30 V DC.
-
Operating temperature: –40 … +85 °C for extreme environments.
-
Housing: Anodized aluminum profile (37 × 35 mm) – space-saving and durable.
-
Protection class: IP67 (standard connector) / IP68 (KA housing version).
🌟 Why Choose the MP727991?
-
Exceptional accuracy for enhanced performance in motion control and hydraulic systems.
-
Extended measuring range up to 7.6 meters – perfect for large-scale industrial equipment.
-
Rugged and durable design built to operate reliably under harsh conditions.
-
Digital interface (SSI) ensures easy integration with PLCs and industrial automation systems.
-
Compact profile ideal for limited-space installations without compromising performance.
