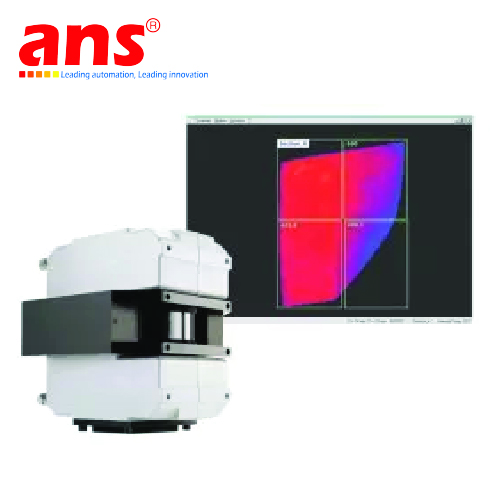

Glass Process Imaging System RAYTGS150G5R0 Raytek
Fluke Process RAYTGS150G5R0 Offers
The GS150 measures a line of up to 1024 points using a rotating mirror that scans a 90º field-of-view up to 150 times per second. The scanning of a glass part is initiated by the measured temperature, or an external "trigger" signal. As each heated glass part traverses the field-of-view, a two-dimensional thermal image or "thermogram" is formed.
Installs easily, just like a camera, and views the glass part from above, whenever it has a clear path. Connecting the pre-wired cables (included) to a PC and entering installation dimensions in the GS150 Software completes the installation process.
Features
- Improve profitability and product quality
- Reduce setup time and detect defects quickly
- Define product-specific configurations and data files
- Automate quality monitoring for ISO9000
- View complete thermal images and temperature profiles
- Customize and display zones overlaid on a thermal image
- Automatically analyze zone temperatures
- Viewing of complete thermal images and temperature profiles
- Thermal image "snapshot" by the temperature or by an external trigger
- Automatic analysis of zone temperature distributions (minimum, maximum, average, gradient, etc.)
- Fail-safe alarm logging
- Defined product-specific configurations
- Event-based saving of thermal images with archive function for analyzing temperature data
- Easy connection with existing visualization and control systems via flexible system interfaces: OPC or DDE, analog or digital output modules, serial RS232 port, Ethernet
Top Applications
This application involves the forming of automotive and truck/bus windshields in the sag-bending process. The glass sheet is heated until it is within it's viscoelastic phase, at which point, the glass then slumps into a former to take on the required shape.
