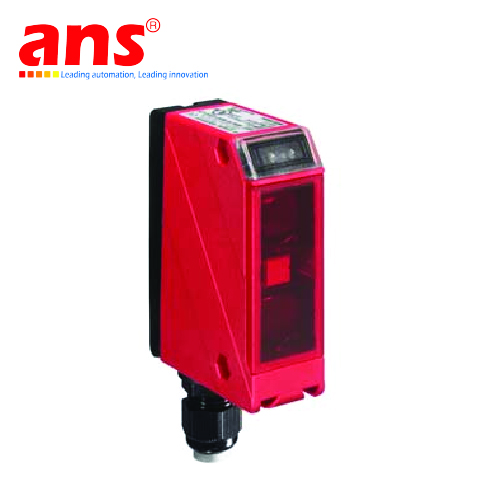

Diffuse sensor HRT 96K/R-1680-1200-25 Leuze Vietnam





All-rounder for detecting and measuring: The new ODT 3C


In many industrial processes, it is not only important that an object is present, but also that it is in a specific position or on the conveyor belt at a specific distance from the machine. Even checking whether an object is separate or lying on top of another object on the conveyor belt can be crucial for the subsequent (packaging) process steps. To perform these tasks with a single sensor, the sensor must supply both switching and measuring information to the machine control. We have achieved this with the development of the new ODT 3C.

The ODT 3C is both a switching and a measuring sensor. This makes it ideal for applications that involve both detection and measurement tasks. As a result, our customers can now perform these tasks easily and effectively with a single sensor.
With the new ODT 3C.

Advantages for you

  • 2-in-1 sensor: Detection and measurement tasks solved by a single sensor
  • Measurement value transmission in the process data with IO-Link
  • Range adjustment via the teach button, cable or IO-Link
  • Excellent black-and-white behavior (< ± 3 mm at 150 mm)
  • The advantage of a sensor with IO-Link: Extensive diagnostic data from the device, e.g. temperature value, signal quality and warning
  • Remote setting: Range adjustment with numerical entry via IO-Link (e.g. 100 mm)
  • The devices have two independent switching outputs (OUT1 and OUT2)

  • Active ambient light suppression: No faulty switching despite direct light from LED hall lighting
  • Models available with warning output (as OUT2)
  • IO-Link models with Smart Sensor Profile acc. to Ed. 2 V1.1 (2021)
  • Protection against tampering thanks to lock for the operational controls
  • Status LEDs visible from all sides
  • Device-specific IO-Link function modules available for Siemens, Beckhoff, Rockwell, etc.
