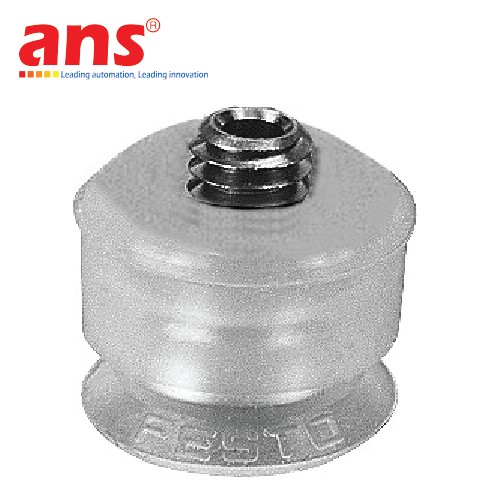

Vacuum suction cup ESS-15-SS FESTO Vietnam
Price: Contact
Brand: FESTO
Category: 4.0 Industry
Supplier: ansvietnam
Origin: EU
Gọi lại cho tôi
0911472255Vacuum suction cup ESS-15-SS FESTO Vietnam
Technical Data
- Min. workpiece radius 35 mm
- Nominal width 2 mm
- Suction cup diameter 15 mm
- Suction cup volume 0.208 cm³
- Connection position up
- Mounting position Any
- Symbol 00991485
- Classification of suction cup holder Size 3
- Suction cup shape Round, flat
- Operating pressure -0.095 MPa ... 0 MPa
- Operating pressure -0.95 bar ... 0 bar
- Operating pressure -13.775 psi ... 0 psi
- Nominal operating pressure -0.07 MPa
- Nominal operating pressure -0.7 bar
- Nominal operating pressure -10.15 psi
- Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- LABS (PWIS) conformity VDMA24364 Zone III
- For use in the food industry See supplementary material information
- Ambient temperature -30 °C ... 180 °C
- Holding force at nominal operating pressure 8.5 N
- Lateral force at nominal operating pressure 6.5 N
- Product weight 1.9 g
- Type of mounting Via vacuum connection
- Vacuum connection M4
- Color Transparent
- Shore hardness 50 +/-5
- Material of screwed plug Brass, nickel-plated
- Note on materials RoHS compliant
- Suction cup material VMQ (silicone)
