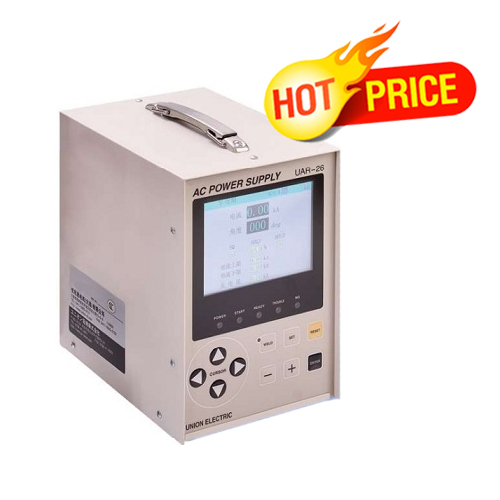

UNION Vietnam,Nguồn Hàn Trở Kháng UAR-26+C19W7+537+439C / UAR-26 UNION

Union UAR-26+C19W7+537+439C Resistance Welding Power Supply – Nguồn Hàn Trở Kháng

Mã đặt hàng: UAR-26+C19W7+537+439C / UAR-26

Nhà sản xuất: Union

Nhà cung cấp: ANS Vietnam

Single phase AC welding power supply controller UAR-26/UAR-40 Unicon - Bộ điều khiển nguồn điện hàn xoay chiều một pha UAR-26 / UAR-40

Vì 4 loại chế độ điều khiển công suất được bao gồm, tùy theo công việc, bạn có thể chọn một chế độ

[bù biến thiên điện áp sơ cấp nửa chu kỳ],

[bù biến thiên điện áp sơ cấp một chu kỳ],

[đa chu kỳ bù biến thiên điện áp sơ cấp] và [dòng điện tương đối đa chu kỳ].

  • UAR-26/UAR-40 Union với chức năng giám sát dòng điện liên tục, tự động theo dõi dòng điện hàn, dải nào được cài đặt trước và có thể quản lý thuận tiện.

  • Tự động / thủ công cài đặt dòng điện tối đa, chỉ có thử nghiệm điện mới có thể thiết lập dòng điện tối đa, việc sử dụng thiết bị hiệu quả sẽ được thực hiện.

  • Một loạt các tín hiệu đầu ra thuận tiện cho việc mang theo thiết bị.

Phiên bản của Resistance Welding Power Supply

Model: UAR-26/UT-C19W6 UHD-537+UHD-439

Model: UAR-26/UT-C19W6 UHD-601

INPUT POWER

AC200V260V(50Hz)    /AC90V~130V(60Hz) (Optional) Single-phase

 CONTRO MODE

half cycle primary    voltage variation compensation

single cycle primary voltage variation compensation    SINGLE CYCLE

Multi cycle of compensating voltage fluctuation MULTI CYCLE V

Multi cycle secondary constant current MULTI CYCLE A

 TIME SETTING

a. Squeeze time (SQ):00~99(cycle)
 b.   Up slope 1: 00~99 (included in the welding time)
 c.   Welding time 1:00~99(cycle)
 d.Down slope 1:00~99(cycle)
 e.    Cooling time::00~99(cycle)
 f.   Up slope 2: 00~99(Cycle)
 g.   Welding time 1:00~99(cycle)
 h. Down slope 2 :00~99 (included in the welding time)
 i. (HOLD):00~99(cycle)
 j. (PUL):1~9(order)Multiple-pulse
 k.   Current    set:10.0%~99.9%(voltage variation compensation)/0.20-9.99KA(constant current)

 MAXIMUM OUTPUT CURRENT

0.50~9.99 KA  Maximum Output Current

 MONITORING INTERVAL

00.0~10.0 (cycle)

 MONITOR SCHEDULE

Current

0.00~9.99 KA (OVERRUN KA )
OVERRUN-.-- KA )-.-- KA )

Conduction    Angle

000~180 deg

Good count

000000~999999  count good weld only

Input power    frequency

45~60Hz

 NO DETECTION SET

00.0~99

 CURRENT/VOLTAGE DETECTION PRECISION

Full Range±3%

 COMMUNICATION SET

Printout Set

You can set the serial communication output.

Baudrate Set

You can choose the baud rate from 9600, 19200, 38400, 57600, 115200 bit.

 THE USE OF THE ENVIRONMENT

Temperature 5~40℃、Humidity90% below(no dew)

POWER  MAXIMUM OUTPUT POWER

20KW (duty factor13% AC220V)

 MATCHING

The    current detection coil UCT-S40

 DIMENSION

240(H)×163(W)×230(L)
 (Without projecting parts)

WEIGHT

5.5kg (no accessory)
